How to Seal the Bottom of a Metal Building: 10 Easy DIY Steps

Table of Contents#

1. Why Sealing the Bottom of Your Metal Building Is Critical
2. Tools & Materials You’ll Need Before You Start
3. 10 Easy Steps to Seal the Bottom of a Metal Building
4. Pro Tips to Extend the Life of Your Seal
5. Frequently Asked Questions
6. References

---

Why Sealing the Bottom of Your Metal Building Is Critical#

Before jumping into the project, it’s important to understand the core benefits of a properly sealed base:

• Blocks pest infestations: Gaps as small as ¼ inch let mice, rats, termites, and other pests enter your building to nest or damage stored items.
• Prevents moisture damage: Water pooling or seeping through base gaps causes rust on metal panels, mold growth on interior surfaces, and rot if you have wood framing or stored goods.
• Cuts energy costs: Sealing gaps reduces air leakage by up to 30% in uninsulated metal buildings, lowering heating and cooling bills by 15-25% on average.
• Extends structural lifespan: Protecting the base of your building from water and pest damage can add 10+ years to its usable life.
• Reduces dust and debris intrusion: A tight seal keeps out wind-blown dirt, pollen, and yard waste, making your building easier to clean.

---

Tools & Materials You’ll Need Before You Start#

Gather these supplies before beginning to avoid mid-project delays:

---

10 Easy Steps to Seal the Bottom of a Metal Building#

Follow these steps for a durable, weatherproof seal:

Step 1: Clear and Prep the Perimeter#

First, remove all debris, mulch, plants, and stored items from at least 12 inches around the entire base of your building. Sweep dirt and loose rust from the foundation surface and the bottom 6 inches of metal wall panels. If the area is heavily soiled, use a power washer to clean it, then let the surface dry completely for 24-48 hours before proceeding. Use a wire brush to scrub away any flaking rust or old caulk from the metal panels.

Step 2: Inspect and Measure All Gaps#

Walk slowly around the full perimeter of the building, marking all gaps with painter’s tape. Categorize gaps by size:

• < ¼ inch: Small gaps from misaligned panels or old caulk failure
• ¼ inch to 1 inch: Medium gaps from minor foundation settling

• 1 inch: Large gaps from significant settling or improper initial installation Also note any cracks in your concrete foundation, as these will need to be repaired first.

Step 3: Repair Foundation Damage#

Fill any concrete foundation cracks with exterior concrete sealant, following the manufacturer’s cure time instructions (usually 12-24 hours). For minor unevenness in the foundation, you can cover gaps with flashing later, but for large uneven sections, apply a thin concrete skim coat to level the surface before sealing.

Step 4: Install Backer Rod for Medium Gaps#

For gaps between ¼ inch and 1 inch wide, push backer rod into the gap until it sits flush with ¼ inch of space left at the top for caulk. The backer rod should be slightly larger than the gap width to stay securely in place. Cut any excess backer rod with a utility knife. Backer rod prevents caulk from sinking deep into gaps, making it more flexible and durable as temperatures change.

Step 5: Fill Small Gaps With Caulk#

For gaps under ¼ inch, apply a smooth, continuous bead of exterior-grade polyurethane or silicone caulk, making sure the caulk adheres to both the metal panel and the foundation surface. Use a caulk finishing tool or gloved finger to smooth the bead, then wipe away excess caulk with a damp rag immediately before it dries.

Step 6: Use Spray Foam for Large Gaps#

For gaps wider than 1 inch, apply low-expansion closed-cell spray foam. Low-expansion foam will not warp metal panels as it cures, and closed-cell foam is water-resistant to prevent mold growth. Do not overfill gaps: leave ¼ inch of space at the top to cover with caulk for a smooth finish. Once the foam cures (usually 1-2 hours), trim any excess flush with the surface using a utility knife.

Step 7: Attach Base Flashing Trim for Extra Protection#

Cut galvanized or aluminum base flashing to fit each wall section. The flashing should overlap the metal wall panel by at least 4 inches and cover the foundation edge by 2 inches. Secure the flashing to the metal panels with galvanized self-tapping screws every 12 inches, then caulk all screw heads and overlapping flashing joints to prevent water intrusion. The flashing acts as a physical barrier to protect caulk and foam from UV damage and impact.

Step 8: Seal Door and Garage Door Bottoms#

Install heavy-duty rubber weatherstripping sweeps to the bottom of all entry doors, adjusting them so they sit flush with the threshold with no visible gaps. For garage doors, add an adhesive-backed rubber threshold seal to the concrete foundation directly under the door, to create a tight seal when the door is closed.

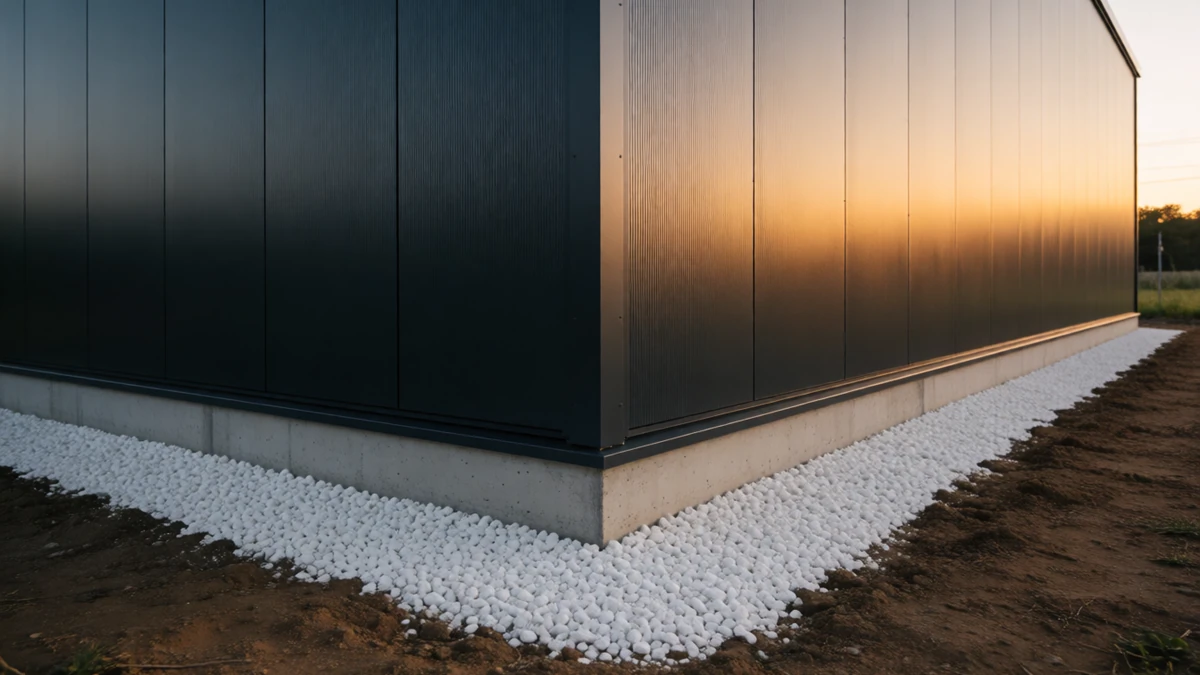

Step 9: Add a Perimeter Drainage Layer#

Pour 2-3 inches of crushed gravel or stone in a 12-inch wide strip around the entire building. Slope the gravel away from the foundation at a 5% grade (1 inch of drop per 2 feet of length) to direct rainwater away from the sealed base. This prevents water from pooling against the seal, which would cause premature wear and rust.

Step 10: Inspect and Let Materials Cure#

Do a final walkaround to check for any missed gaps, and touch up caulk or foam as needed. Let all materials cure for at least 24 hours before exposing them to rain, snow, or extreme temperature changes.

---

Pro Tips to Extend the Life of Your Seal#

• Never use open-cell spray foam for exterior base sealing: it absorbs water, leading to mold growth and rust on metal panels.
• Do not seal intentional weep holes in your metal building’s base: these are designed to let trapped moisture escape from the wall cavity.
• If you live in a termite-prone area, install a metal termite shield between the flashing and foundation before securing the trim.
• Inspect your seal every 6 months, especially after heavy storms or winter freezes, and touch up damaged caulk or foam immediately.
• Use UV-resistant caulk for buildings exposed to full sun, to prevent cracking and peeling.

---

Frequently Asked Questions#

Q: How much does it cost to seal the bottom of a metal building?#

A: For a standard 30x40 foot metal garage, materials cost between $150 and$300, compared to $500 to$1,000 for professional installation.

Q: How long will the seal last?#

A: Caulk and foam seals last 5-10 years with regular touch-ups, while galvanized base flashing can last 20+ years.

Q: Can I seal my metal building in cold weather?#

A: Most caulk and spray foam products require application temperatures above 40°F (4°C). Check the manufacturer’s label for specific temperature guidelines.

Q: What if my building has a dirt or gravel foundation instead of concrete?#

A: Install a pressure-treated wood sill plate along the base of the building first, secure the metal panels to the sill plate, then seal the gap between the wood and metal with caulk. Add a 12-inch gravel perimeter sloped away from the building to improve drainage.

---

References#

1. Steel Building Association of America (SBAA). 2024 Best Practices for Metal Building Envelope Sealing.
2. U.S. Department of Energy. Air Sealing Guide for Residential and Commercial Structures.
3. National Pest Management Association. Exterior Perimeter Pest Prevention Guidelines for Metal Structures.
4. Portland Cement Association. Concrete Crack Repair and Sealing for Residential Foundations.
5. International Code Council (ICC). Metal Building Construction Code Requirements for Weather Resistance.
