How to Braze Stainless Steel: 2 Easy, Reliable Processes

---

Table of Contents#

1. What Is Brazing, And Why Use It For Stainless Steel?
2. Non-Negotiable Pre-Brazing Prep Steps
3. Process 1: Torch Brazing (Best For Small/DIY Projects)
4. Process 2: Furnace Brazing (Best For Batch/High-Volume Work)
5. Common Stainless Steel Brazing Mistakes To Avoid
6. Post-Brazing Care & Finishing
7. Final Thoughts
8. References

---

What Is Brazing, And Why Use It For Stainless Steel?#

Brazing is a metal-joining process that uses a filler metal with a melting point above 840°F (450°C) but below the melting point of the base stainless steel (which melts at ~2750°F / 1510°C). The molten filler is pulled into tight joint gaps via capillary action, creating a bond that is often stronger than the base metal itself.

Key benefits of brazing stainless steel vs welding or soldering:

• Minimal heat input eliminates warping, discoloration, and damage to stainless steel’s corrosion-resistant chromium oxide layer
• No advanced welding skills required
• Works for joining stainless steel to dissimilar metals (copper, brass, aluminum, etc.)
• Creates fully leak-proof joints ideal for pipes, fluid tanks, and food-grade equipment

---

Non-Negotiable Pre-Brazing Prep Steps#

Stainless steel forms a thin chromium oxide layer on its surface within seconds of being exposed to air, which prevents brazing filler from adhering. Skip these prep steps, and your joint will fail:

1. Clean thoroughly: Wipe all joint surfaces with a degreaser or isopropyl alcohol to remove oil, grease, dirt, or rust.
2. Abrade joint surfaces: Scuff mating surfaces with 120-grit sandpaper or a stainless steel wire brush to remove the existing oxide layer.
3. Apply flux immediately: Brush a thin, even layer of stainless-steel-specific brazing flux (usually black paste flux) onto abraded surfaces right after scuffing. Flux dissolves any new oxide that forms and prevents oxidation during heating.
4. Fit joints correctly: Leave a 0.002–0.005 inch (0.05–0.13 mm) gap between mating parts for capillary action to work. Clamp parts in place to avoid shifting during brazing.
5. Choose the right filler:
   • Silver-based (BAg) filler: Low melting point (~1100–1400°F), easy to work with, ideal for DIY and low-temperature applications. Use cadmium-free variants for food-safe projects.
   • Nickel-based (BNi) filler: Higher temperature resistance and better corrosion resistance, ideal for industrial and high-heat applications.

Safety note: Always work in a well-ventilated area, wear heat-resistant gloves, safety glasses, and a fume respirator, and keep a fire extinguisher nearby for all brazing work.

---

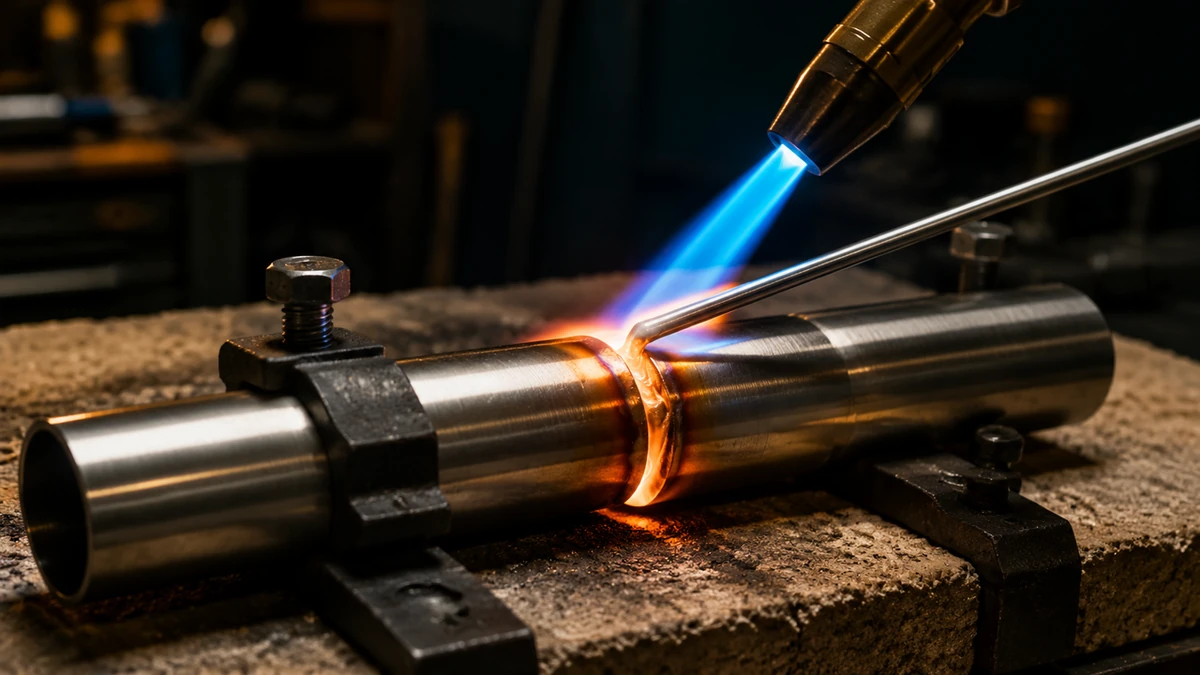

Process 1: Torch Brazing (Best For Small/DIY Projects)#

Torch brazing is the most accessible process for hobbyists, small repairs, and one-off custom builds, requiring only basic, low-cost supplies.

Required Supplies#

• Propane or oxy-acetylene torch (propane works for most thin-stock DIY projects; oxy-acetylene is better for stainless steel thicker than 1/4 inch)
• Stainless steel brazing flux
• Selected filler rod
• Clamps, heat-resistant work surface, wire brush

Step-by-Step Instructions#

1. Secure your clamped workpieces to a fireproof work surface, with clear access to the full joint.
2. Apply a small amount of flux to the tip of your filler rod, in addition to the flux already on the joint surfaces.
3. Adjust your torch to a neutral flame: for oxy-acetylene, this means a sharp, 1/8–1/4 inch long inner blue cone with no excess orange acetylene feather or pale, sputtering oxygen-rich flame. For propane, use a swirl tip for even heat distribution.
4. Heat the entire joint evenly, moving the torch constantly to avoid hot spots. Do not heat the filler rod directly. Stop heating when the flux on the joint turns clear and glassy (this signals the joint is at the correct temperature for filler flow).
5. Touch the end of the filler rod to the joint. If it melts instantly, the joint is hot enough. Capillary action will pull the molten filler into the joint gap. Feed just enough filler to fill the entire joint, avoiding excess buildup.
6. Allow the joint to cool completely at room temperature. Do not quench it in water, as this will cause brittleness and cracking.

---

Process 2: Furnace Brazing (Best For Batch/High-Volume Work)#

Furnace brazing is ideal for complex assemblies with multiple joints, or production runs of identical stainless steel parts. It delivers consistent, uniform joints with no manual heating required.

Required Supplies#

• Controlled-atmosphere furnace (small hobby kilns work for low-volume projects; industrial vacuum/inert gas furnaces are used for commercial production)
• Pre-cut filler preforms, paste, or foil
• Stainless steel brazing flux (only required for air-atmosphere furnaces; vacuum or inert-atmosphere furnaces eliminate the need for flux)
• Heat-resistant fixtures to hold parts aligned during heating

Step-by-Step Instructions#

1. Pre-place filler material at all joint gaps, and apply flux if using an air-atmosphere furnace. Secure parts in heat-resistant fixtures to prevent shifting during heating and cooling.
2. Load parts into the furnace. If using an inert-atmosphere or vacuum furnace, purge all oxygen from the chamber first to prevent oxidation.
3. Set the furnace temperature to 50–100°F above the melting point of your selected filler (1200–1400°F for silver filler, 1800–2000°F for nickel filler). Hold at this temperature for 2–5 minutes to allow filler to melt and flow fully into all joint gaps.
4. Run a controlled cool-down cycle, gradually lowering the temperature to avoid thermal shock and cracking. Do not open the furnace until parts have cooled to below 200°F.
5. Remove parts and clean off any residual flux if used.

---

Common Stainless Steel Brazing Mistakes To Avoid#

1. Skipping surface prep: Even a tiny amount of grease or unremoved oxide will prevent filler from adhering to stainless steel.
2. Incorrect joint gap: Gaps larger than 0.005 inch prevent capillary action, while gaps smaller than 0.002 inch leave no space for filler to flow.
3. Heating the filler instead of the base metal: Filler that melts in the flame instead of on the hot joint will not bond to the stainless steel, creating a weak, brittle joint.
4. Quenching hot joints: Sudden cooling causes micro-cracking in the filler and base metal, drastically reducing joint strength.
5. Using general-purpose flux: Standard soldering or brazing flux will not dissolve stainless steel’s chromium oxide layer, leading to failed bonds.

---

Post-Brazing Care and Finishing#

1. Remove residual flux: Brazing flux is corrosive and will damage stainless steel over time. Scrub joints with a wire brush and hot soapy water, or use a mild pickling solution for stubborn flux residue.
2. Restore finish (optional): Sand joints with progressively finer sandpaper (up to 400 grit) and polish with a stainless steel polish to restore a uniform, shiny finish. For food-grade or high-corrosion applications, passivate the part with a citric acid solution to rebuild the chromium oxide layer.
3. Test the joint: For structural parts, apply moderate pressure to confirm the bond is solid. For fluid-carrying parts, run a low-pressure air or water test to check for leaks.

---

Final Thoughts#

Brazing is a versatile, low-skill way to join stainless steel for almost any application. Torch brazing is the best starting point for beginners and small repair jobs, while furnace brazing is the go-to for consistent, high-volume production. The most important rule for successful stainless steel brazing is to prioritize prep: thorough cleaning, immediate flux application, and correct joint fit will eliminate 90% of common bonding issues.

---

References#

1. American Welding Society (AWS). (2022). Brazing Handbook, 6th Edition. AWS Press.
2. International Stainless Steel Forum (ISSF). (2023). Brazing Guidelines for Standard Stainless Steel Alloys. Retrieved from https://issf.org/guidelines/brazing-stainless-steel
3. Hobby Welding Association. (2024). Beginner’s Guide to Torch Brazing Stainless Steel. Retrieved from https://hobbywelding.org/brazing-stainless-steel-for-beginners
4. Occupational Safety and Health Administration (OSHA). (2023). Brazing and Soldering Safety Guidelines. Retrieved from https://osha.gov/laws-regs/regulations/standardnumber/1910/1910.252
